Geological cross-sections
Cross-section
software

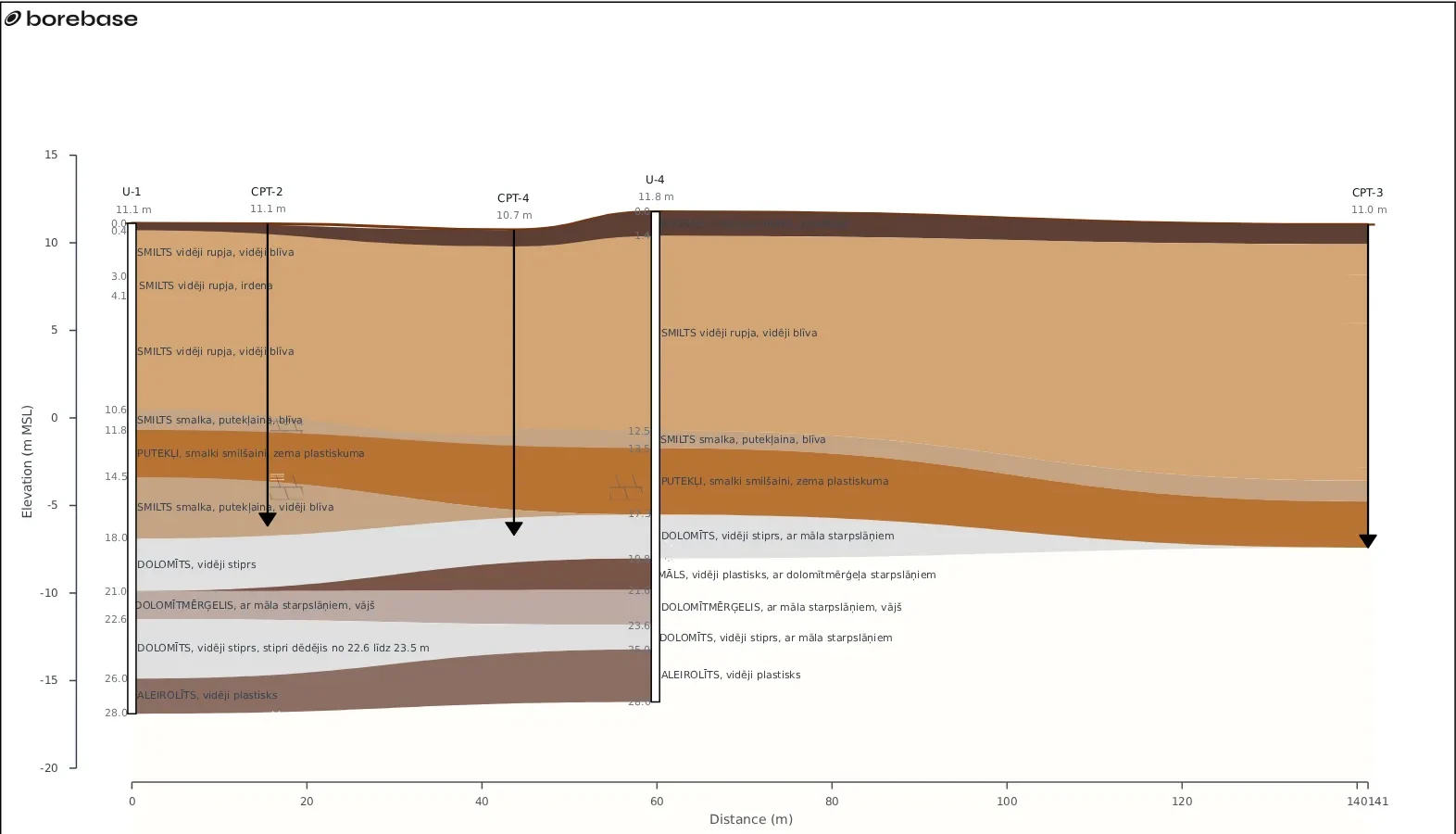

Pick the investigation points and Borebase draws the layers between them to scale. Export the section as a PDF for the report or as DXF to finish it in CAD.
PDF · DXFexport
A4 · A3 · Letteror a custom page
m · ftmetric or imperial
01 / SECTIONPoints In.
Points In.
Section Out.
Choose the boreholes, CPT, SPT and DPT tests for the section. Borebase places them by distance and elevation and draws the layers between them.
- ✓Boreholes, CPT, SPT and DPT
- ✓Elevation and distance axes
- ✓Layer names on the drawing
Demo data
Vertical exaggeration
02 / PAGE & SCALEYour Sheet.
Your Sheet.
Your Scale.
Choose A4, A3, Letter or a custom page in portrait or landscape, then set the horizontal scale and the vertical exaggeration.
- ✓A4, A3, Letter or a custom size
- ✓Horizontal scale
- ✓Vertical exaggeration
Page sizeA3 (297 × 420 mm)
OrientationLandscapePortrait
Horizontal scale1:600
Vertical exaggeration2×
03 / EXPORTPDF and DXF.
PDF and DXF.
Same Section.
Export the finished section as a PDF with a title block for the report, or as DXF to keep drawing in CAD.
- ✓PDF with a title block
- ✓DXF for CAD
- ✓Both from the same section
Objects
BoreholeCPTSPTDPT
borebaseExport
PDFDXF
04 / SITE MAPEvery Point.
Every Point.
On the Map.

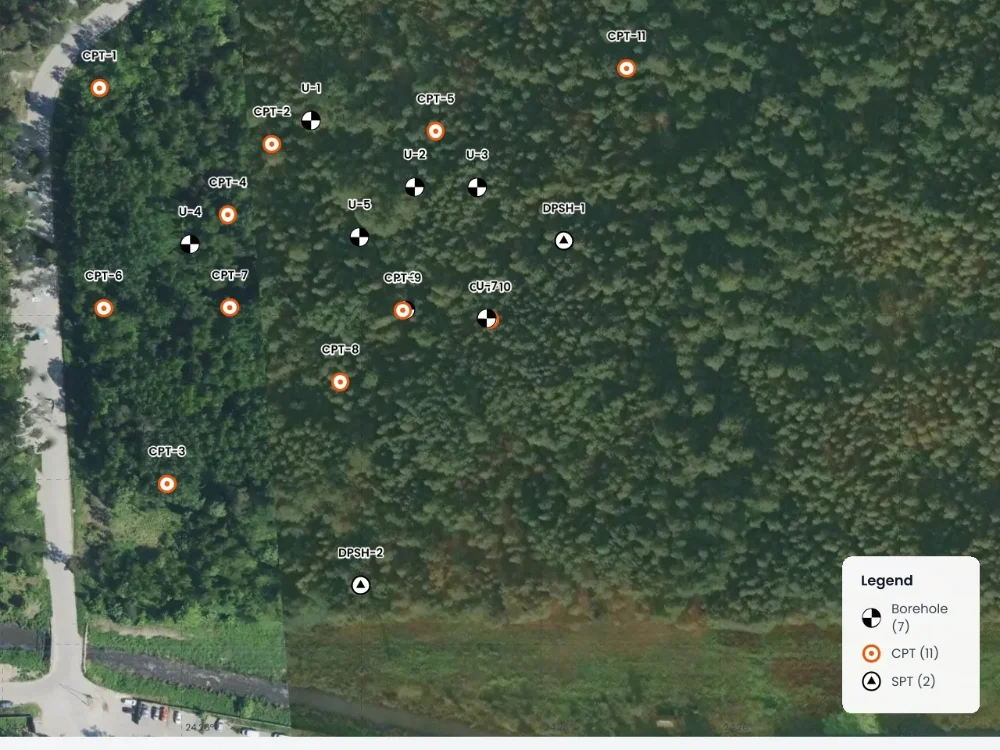

See every borehole, CPT and SPT of the project on the map and export the site plan with a legend and scale bar to PDF.
- ✓Street and satellite maps
- ✓Legend and scale bar
- ✓PDF export
More in Borebase
Borehole logsBorehole log softwareStratigraphy, samples, water levels and PDF logs from one borehole record.Cone penetration testsCPT softwareImport, graphs, Ic-based layers and derived parameters for every sounding.gINT alternativegINT alternativeBorehole logging in the browser, with nothing to install.
Try It on
Your Own Project.
Create a project, add your boreholes and soundings, and export the first report.
No credit card · takes 2 minutes
